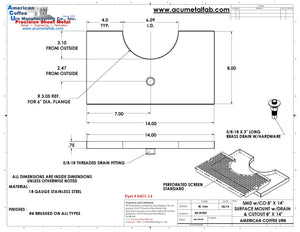

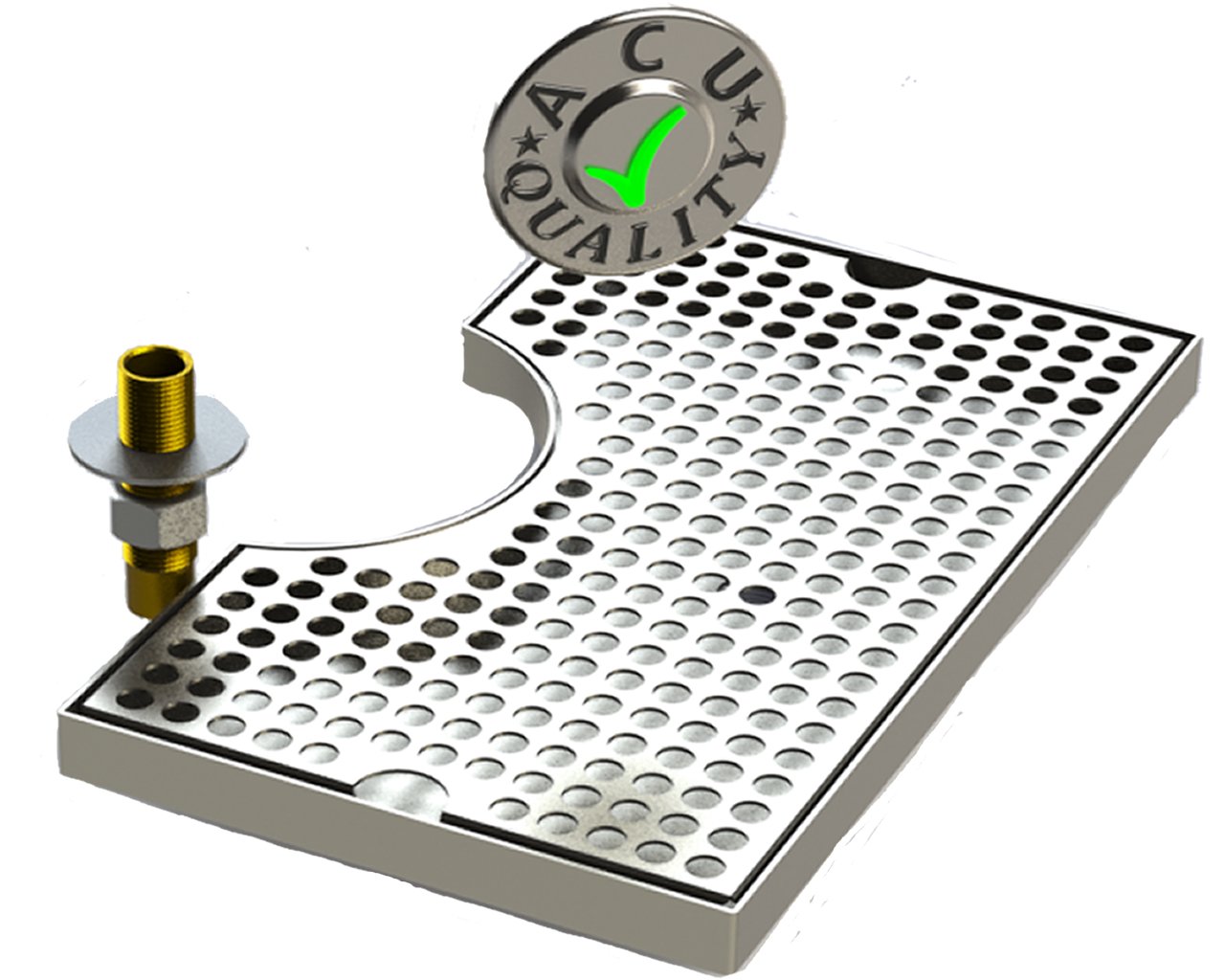

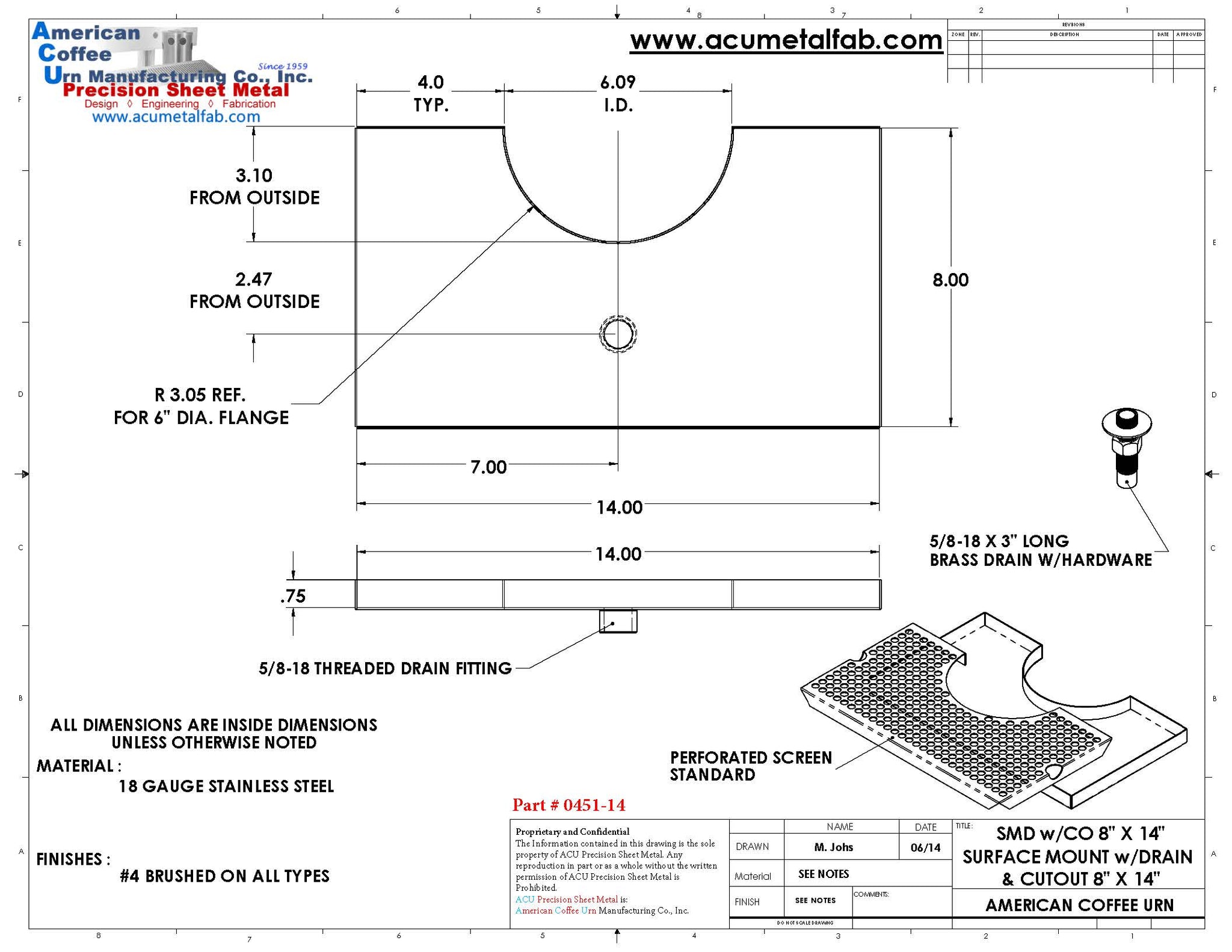

The SMDCU (Surface Mount Drain Cut Out Drip Tray) style drip trays are designed to mount to the top of any suitable surface with a drain hole drilled through and are relieved to fit around a Draft Arm base. Trays are secured to surface using supplied hardware. Drip Trays are made of 18 ga. Stainless Steel in #4 brushed finish. The corners and seams are welded and ground to a brushed finish. All exposed edges are deburred smooth for safety and appearances. Each tray is available with a standard 18 ga. perforated screen. Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting.
Surface Mount with Cut-Out and Drain
Stainless Steel # 4 Brushed Finish.
Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting
