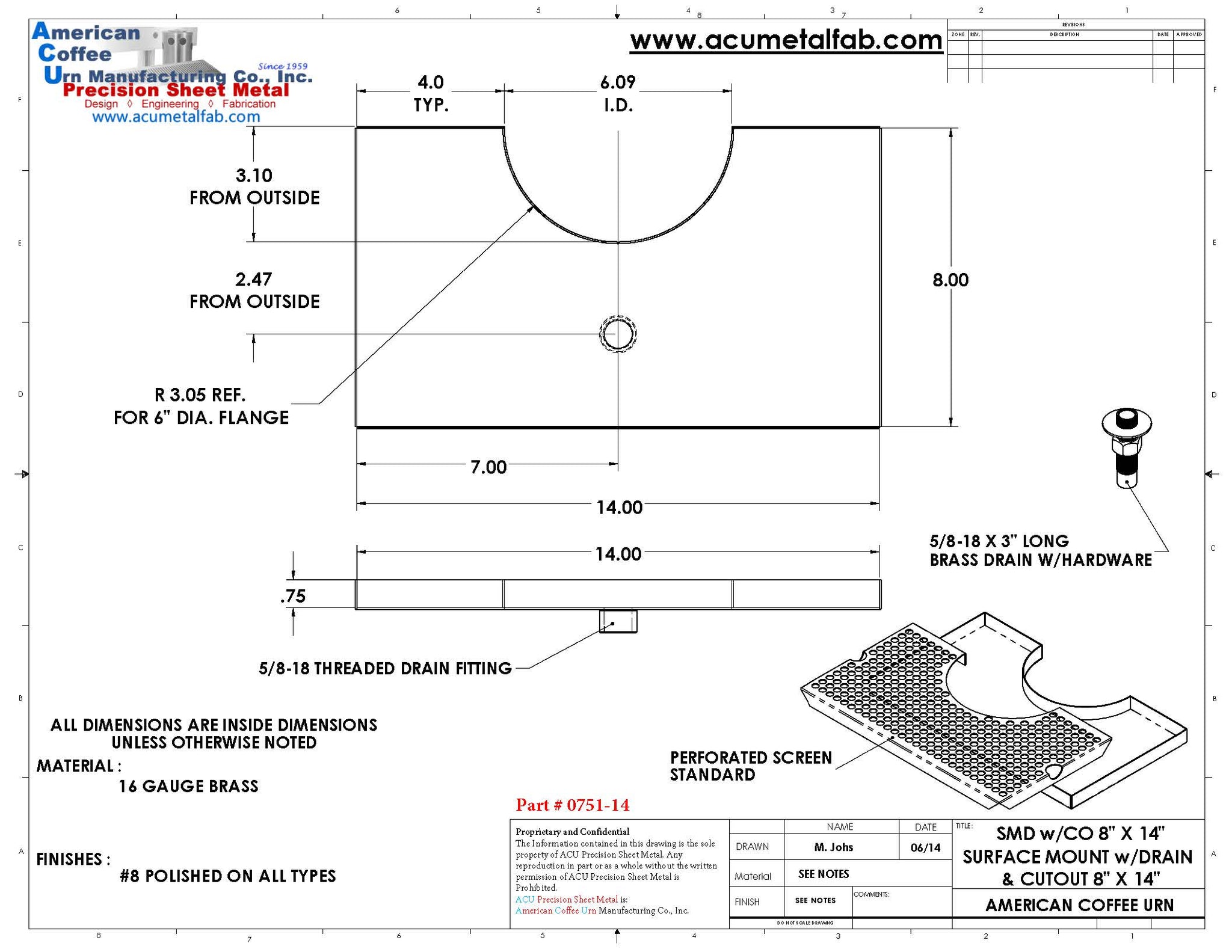

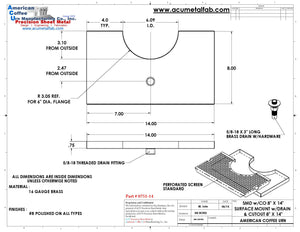

The SMDCU (Surface Mount Drain Cut Out Drip Tray) style drip trays are designed to mount to the top of any suitable surface with a drain hole drilled through and are relieved to fit around a Draft Arm base. Trays are secured to surface using supplied hardware. This Drip Tray is made of 16 ga. Brass in #8 Mirror finish. The corners and seams are welded and ground to either a brushed or polished (mirror) high finish. All exposed edges are deburred smooth for safety and appearances. This tray is available with a standard 16 ga. perforated screen. Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting.
Surface Mount with Cut-Out and Drain
Brass # 8 Mirrored Finish
Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting
