0450-12

Surface Mount Drip Tray with Cut Out and Drain | 7" X 12" X ¾" | 5" Flange | SS #4

Need it Faster? Add a rush charge in the cart

Surface Mount Draft Beer Drip Tray, with Cutout for a 3" Column Tower, with Drain

*Please allow 1-2 days for this product to ship*

The SMDCU (Surface Mount Drain Cut Out Drip Tray) style drip trays are designed to mount to the top of any suitable surface with a drain hole drilled through and are relieved to fit around a Draft Arm base. Trays are secured to surface using supplied hardware. Drip Trays are made of 18 ga. Stainless Steel in #4 brushed finish. The corners and seams are welded and ground to a brushed finish. All exposed edges are deburred smooth for safety and appearances. Each tray is available with a standard 18 ga. perforated screen. Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting.

  • Surface Mount with Cut-Out and Drain
  • Stainless Steel # 4 Brushed Finish.
  • Drain tubes are 5/8-18 x 3" brass and secured to welded female drain fitting
  • Hardware Included
  • Made in the USA!

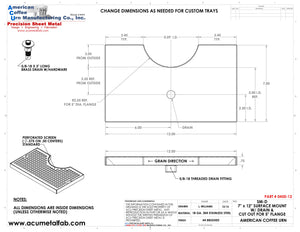

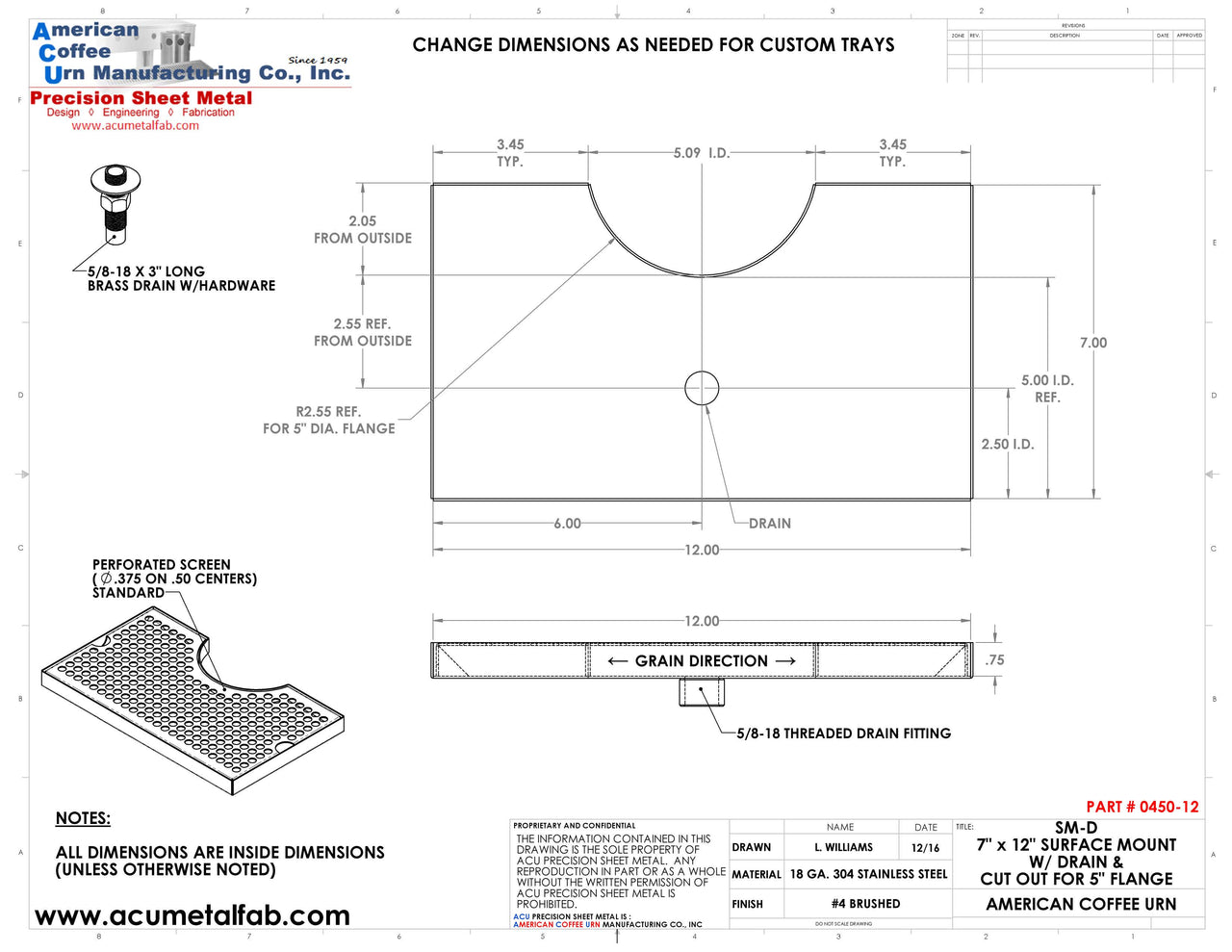

Surface Mount with Cut Out Beer Tray Drawing (Spec Sheet)
