Wall Mount Drip Tray with Drain | 6-3/8" X 18" X 14" X 1" | S/S # 4 | 6 Faucet Holes

$ 216.95 USD

Wall Mount Drip Tray with Drain | 6-3/8" X 18" X 14" X 1" | S/S # 4 | 6 Faucet Holes

$ 216.95 USD

SKU: 04001806D

Need it Faster than the lead time in Red? Add a rush charge in the cart

Description Rush Charge Shipping

18" Stainless Steel Wall Mount Drain Tray - 6 Faucet Holes

*Please allow 3-4 days for this product to ship*

The wall mount with drain (WMD) style wall mounts are designed to mount to any suitable vertical surface and can be configured for multiple beer taps. Wall Mounts are made of 18 Stainless Steel in #4 brushed finish. The front edge of the tray is hemmed for reinforcement. The corners and seams are welded and ground to a brushed finish. All exposed edges are deburred smooth for safety and appearances. Each tray comes with a standard 20 ga. louvered screen Drains are 1 1/2" long, 1/2" NPT Pipe Thread. Angled bottom for drainage.

  • 6 Faucet Holes
  • Made to hang on a wall, when a counter won't suffice
  • Drain to drain liquid out (Angled Bottom)
  • 1/2" NPT Pipe Thread
  • Made in the USA!
  • All exposed edges are deburred smooth for safety and appearances.
  • The corners and seams are welded and ground to a brushed finish

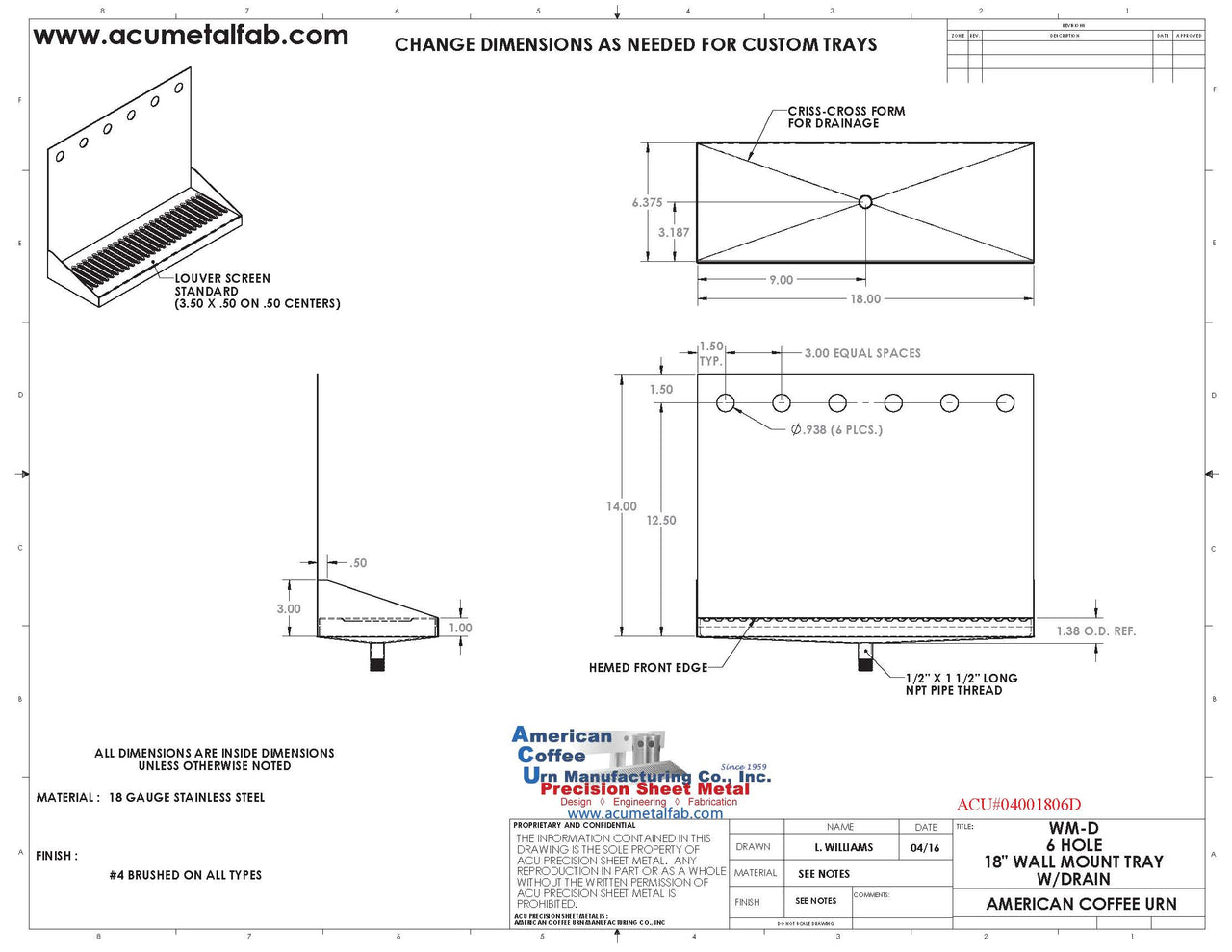

Wall Mount Beer Tray Drawing (Spec Sheet)
