The Styles of Draft Beer Drip Trays

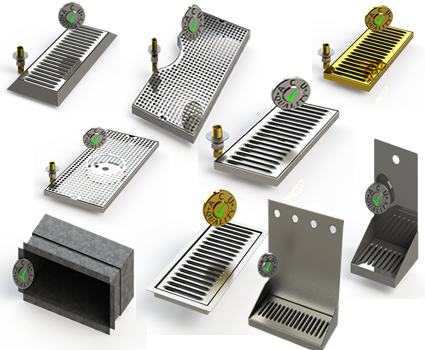

DRIP TRAY STYLES

Surface Mount Drip Tray Series

Surface mount drip trays are the easiest to install. Only one hole is required through the countertop for the drain line. The drip tray is secured with a nut and washer attached to the drain pipe. Surface mounting means it is mounted on top of a surface's face. This means if you ran your hand along the surface, your hand would run into the object that was mounted.

We also have surface mounted drip trays with no drain hole. This means at the end of the day or the end of your pour, then you would lift the surface mount drip tray from your surface and wash out the excess beer or other liquid.


Cut-out Drip Tray Series

The cut-out series is named for its design of following the flange of the tower. The advantage of this style is better drip coverage for the faucets. Only one hole is required through the countertop for the drain line. The drip tray is secured with a nut and washer attached to the drain pipe (if you are buying a cut out with a drain).

Our cut-out series also has an option for not with drain. This becomes like a surface mount drip tray with no hole. This means at the end of the day or the end of your pour, then you would lift the cut-out drip tray from your surface and wash out the excess beer or other liquid.


Flush Mounted "Recessed" Drip Tray Series

Recessed trays provide an uncluttered presentation for the bar top. The disadvantage for this drip tray is installing it. A rectangle needs to be cut into the counter top to match the size of the pan length. The tray is secured to the counter with silicon sealant. Recessed mounting “flush mounting” means that there is a hole that will allow for the drip tray to fit inside. If you were to run your hand along the surface in this case, your hand wouldn’t run into anything, but you would feel the texture change.


Bevel Edge Drip Tray Series

The bevel edge drip tray series adds a style of a designer to the bar top. The edges of the tray are slanted creating an awesome look near your draft beer tower.


Wall Mounted Drip Tray Series

Wall mount drip trays are an excellent choice for outside of a walk-in cooler. Shanks with faucets are mounted through the drip tray directly into the walk-in. We offer a variety of pre-drilled holes for an easy installation. A threaded drain is included for easy plumbing connections. We have a variety of drain options. Middle drain, left, right, and or both depending on the style you want.


Rinser Hole Drip Tray Series

Add some dispense excitement to pouring with our rinser hole drip trays. Simply turn over your beer glass and push down on built-in sprayer. Water is rinsed over the inside of the glass. A wet glass makes pouring the best glass of draft beer easier. Trays are constructed of heavy gauge stainless steel or brass with a Stainless Steel, Brass, and or Copper rinser. A water regulator is required for all rinser trays.

***Rinsers are not included with each tray. They must be purchased separately, as well as the regulator. We do this because some people want to use their own rinser and or want different material to fit the look they want. ***


Wrap Around Drip Tray Series

The Wrap Around drip tray mounts under the tower and close to the bar edge. A threaded drain is included.


DRIP TRAY PARTS

Replacement drains, draft beer rinsers, and water regulators. More coming soon…

If you don't see what you're looking for, or not sure how to choose the right drip tray to match your tower or installation, please give us a call at 951-943-1495 (Contact US) or send us an email at ACU Precision Sheet Metal.

Our goal is to provide the highest level of service of quality, detail, and competitive pricing from the manufacturer (us…AKA ACU Precision Sheet Metal) for draft beer drip trays & draft beer towers.
